Meister ARC2 lathe DRO c/w linear scales for lathe (20" to 40" BC)
This item is in stock
Meister ARC2 lathe DRO with scales to suit any of these lathes: Between centers: 20" / 22" / 26" / 30" / 36"/40" Scale Model: MX Standard, 5 um (0.00 2") resolution.
Meister ARC2, 2-axis Digital Readout (DRO) and Linear Scales for Lathe
DRO with 2 pieces linear scales for your lathe. We have the scales to suit any lathe 20", 22", 30", 36 andr 40" (500mm to 1000mm) between centers

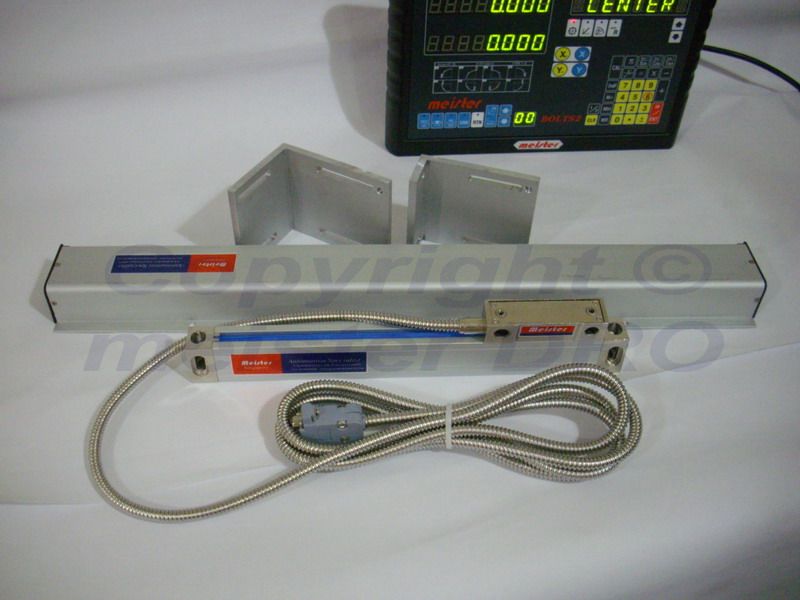

1X Meister ARC2 digital readout c/w dust cover, mounting arm
1X Standard scale for the carriage; to suit 20", 22", 24", 36" or 40" lathe
1X Standard scale for the cross slide
1X scale mounting bracket
Free extruded aluminium coolant covers
English operation manual
Warranty period: 1 year.
Not sure what are the linear scales size for your lathe, please email to me right away.
ARC2 Digital Readout Specification:
ABS polymer casing box
Response Speed: 60m/min. (198.6feet/min)
Resolution: 5 um/0.0002"
Power source: AC 110~ 220V, 50/60 Hz auto-switching
Temperature range: Operating 0~40º C
Display: 8-digits green color LED display
Dimension: 28 x 18 x 5 cm
Functions of ARC2 DRO:
"1/2" - selected axis display is divided by 2
Absolute/Increment Co-ordinate Interchange
Recall - recall the memorized coordinate position
Set X-axis to default as radius or diameter
D/R (Diameter/Radius) key conveniently located on front panel
Taper measure: measure the angle of the cone/taper
Linear error compensation
Resolution selectable (must be same resolution as scale used)
Power Down Memory
Change scale direction (+/-)
Tool-offset memory (store the difference in X1, X2 ... of 99 different cutting tools).
Standard Linear Scale Specification:
Etched glass scale type
Grating pitch: 0.02mm (50LP/min).
Accuracy: 0.005 mm or 0.0002"(at 20 deg C)
Every scale has reference marks
Response Speed: 60m/min or 40ins/sec.
Output Signal: TTL square wave
Armoured cable length, 2.5m Note: We always refer to linear scale by the travel length and not the overall length. Select one that match the travel of your lathe, mill, mill-drill, bench top mill, EDM, grind, etc.
Factory make linear scale of travel length: Metric: 100, 120, 150, 170, 200, 220, 250, 270, 300, 320, 350, 370, 400, 420, 450, 470, 500, 520, 550, 570, 600, 620, 650, 700, 720, 750, 770, 800, 850, and 900 mm.

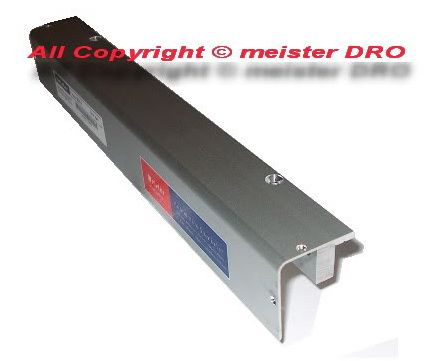

For lathe, we provide a aluminium coolant guard specially made for the lathe cross slide. The back plate is first mounted on the cross slide. And the linear scale is mounted on this back plate. That make the job much easier!
Factory make a wide range of linear scales to fit your machines -
MS5 Microscale is suitable for use where space is tight (top slide of a lathe). Available from 100 mm to 500 mm travel length. It has the smallest profile.
MS6 Slim scale has a slightly bigger profile than MS5 Microscale, but cost less.
MS2 Ultra are long scales designed to withstand machine vibration. Available from 1150 to 2000 mm travel length.
Factory also make linear scales with travel from 2000 mm to 3000 mm. Please contact me for more information.

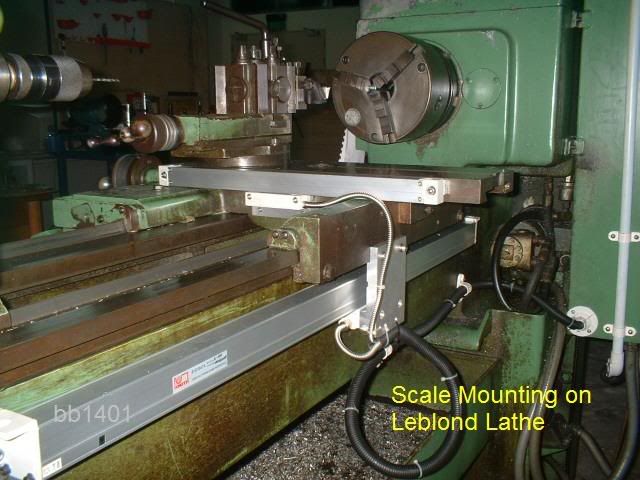

Install the coolant guard to protect the linear scale from coolant/chips.
Using Meister MS5 Microscale on EMCO 8 cross slide
