Meister BOLTS2 digital readout DRO and scales ( Milling, mill, boring, grinder and drill )
Price: $449.00
This item is in stock
|
Meister BOLTS2 digital readout is supplied with 2 pieces of MX linear glass scales of your choice:
Inches: 4, 4.7, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34, and 36" travel stroke or measuring length.
Metric: 100, 120, 150, 170, 200, 220, 250, 270, 300, 320, 350, 370, 400, 420, 450, 470, 500, 520, 550, 570, 600, 620, 650, 700, 720, 750, 770, 800, 850, and 900 mm.
Type of connector: D9
SKU: BOLTS2
Not sure what are the linear scales size for your knee mill, boring or bench top machines, please email to me right away. When selecting the scales for you, we always look at the machine specification so that we will not go wrong. The scale should not be shorter than the actual travel length of the machine. And if space allows, it is alright to install a longer scale.
Meister BOLTS2, 2-axis Digital Readout Linear Scales for milling / mill-drill or boring machines
Mill DRO with 2 pieces of linear scales. Travel stroke from 4" to 36" (100 to 900mm).
Suitable for any vertical milling or boring machines with X axis up to 900mm (36") travel.
This BOLTS2 DRO package can be used on these machines: Deckel, Abene, Bridgeport clones, ...
and mill-drill machines such as HBM45, BF20, RF31, SIEG, ...
|


|
Package Content:

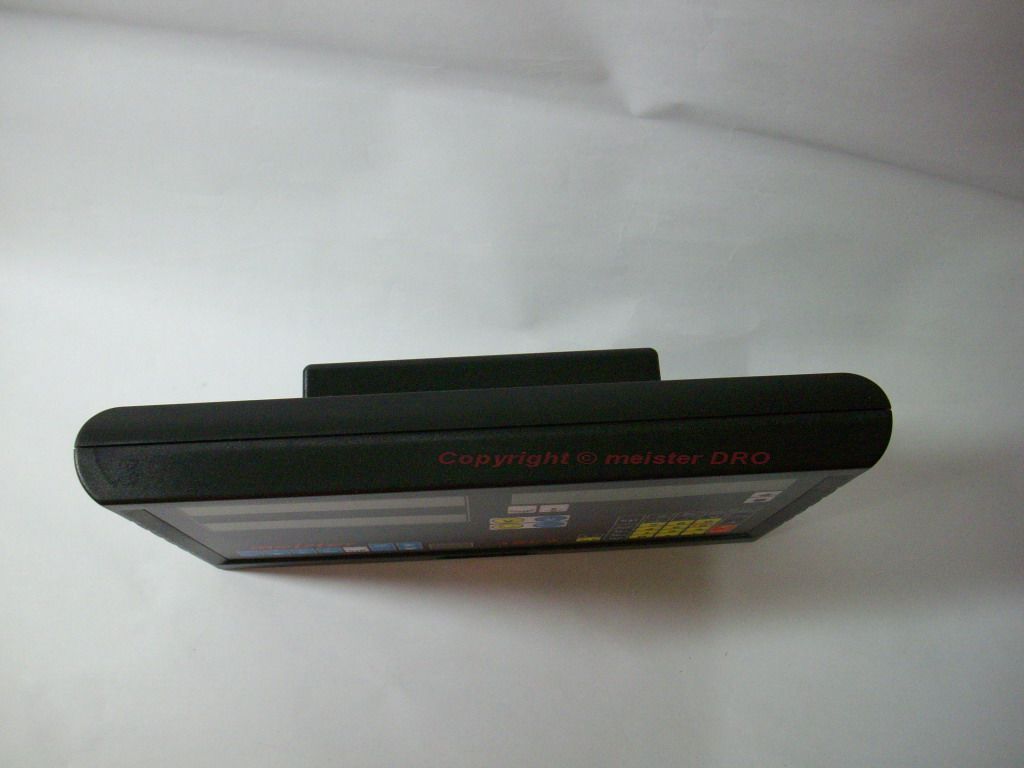

1X Meister BOLTS digital readout c/w dust cover, mounting arm

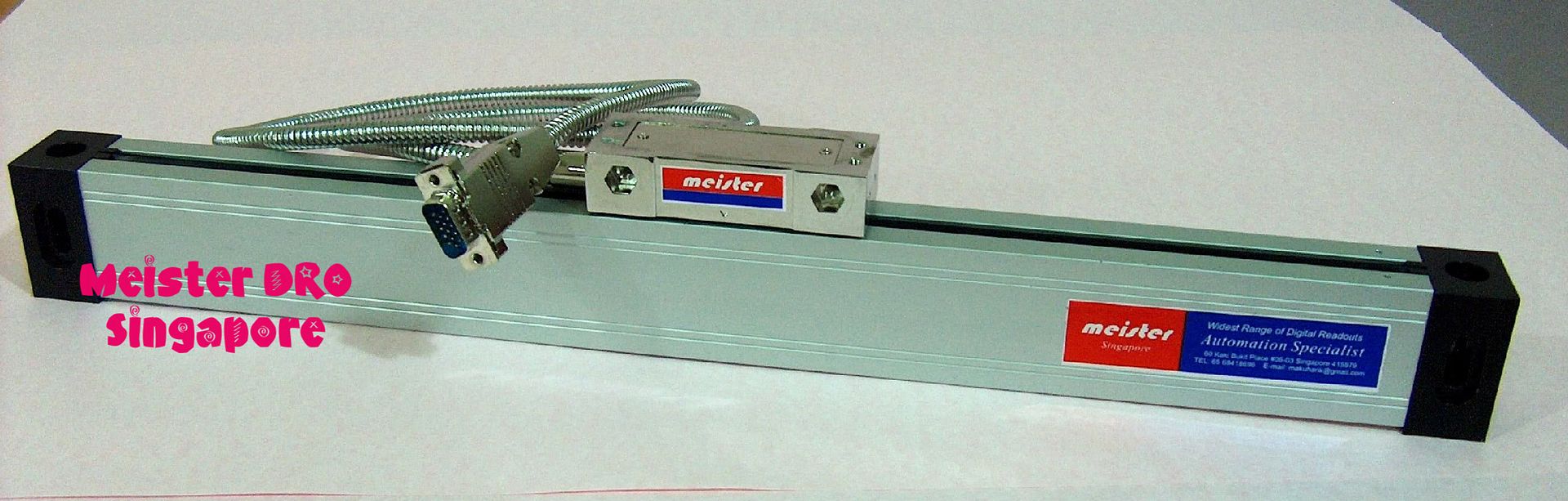

2X Meister linear scales. Choose any of these scales: 4, 4.7, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34, and 36" (Metric: 100 to 900 mm) travel or measuring length
1X scale mounting bracket
Extruded aluminium coolant covers
English operation manual
|
|
Warranty period: 1 year.
|
BOLTS Digital Readout Specification:
- ABS polymer casing box
- Membrane keypad
- Response Speed: 60m/min. (198.6feet/min)
- Resolution: 5 um/0.0002"
- D9 connection
- Power source: AC 110~ 220V, 50/60 Hz auto-switching
- Temperature range: Operating 0~40º C
- Display: 8-digits green color LED display
- Dimension: 28 x 18 x 5 cm
|
Functions of BOLTS DRO:
- '1/2' : - displayed value is divided by 2.
- Preset X, Y and Z dimensions.
- Scientific Calculator
- INC/ABS: Increment/Absolute Co-ordinate Interchange.
- RTN - Paused in the middle of a job to go to the normal mode and return to continue your job. The data will not be lost.
- Bolt Hole Circle Pattern (Pitch Circle Diameter)
- Holes on a straight line
- SRK: Shrinkage factor (for mold making)
- Store 99 multiple datum points
- Absolute/Increment co-ordinate (ABS/INC)
- Mechanic Zero Position Memory: re-establish work piece zero position after power failure
- Linear error compensation
- Resolution selectable (must be same resolution as scale used)
- Power Down Memory
- Change scale direction (+/-)
|
|
Standard Linear Scale Specification:
- Model: MX
- Etched glass scale type
- Resolution: 5um.
- Grating pitch: 0.02mm (50LP/min)
- Accuracy: ±0.005 mm or 0.0002"(at 20 deg C)
- Every scale has reference marks
- Response Speed: 60m/min or 40ins/sec.
- Output Signal: TTL square wave
- Armoured cable length, 2.5m
Note: We always refer to linear scale by the travel length and not the overall length. Select one that match the travel of your lathe, mill, mill-drill, bench top mill, EDM, grind, etc.
|
Factory make linear scale of travel length:
Metric: 100, 120, 150, 170, 200, 220, 250, 270, 300, 320, 350, 370, 400, 420, 450, 470, 500, 520, 550, 570, 600, 620, 650, 700, 720, 750, 770, 800, 850, and 900 mm.
Inches: 4, 4.7, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34, and 36".
Factory make a wide range of linear scales to fit your machines -
- MS5 Microscale is suitable for use where space is tight (top slide of a lathe). Available from 100 mm to 500 mm travel length. It has the smallest profile.
- MS6 Slim scale has a slightly bigger profile than MS5 Microscale, but cost less.
- MS2 Ultra are long scales suitable for boring machines. Travel length available: 1250, 1550, 1650, 2050 mm. Please contact me for scale dimensions.
- Install the coolant guard to protect the linear scale from coolant/chips.
|
Manufacturer: Meister
SKU: N/A
Unit of Measure: Piece
|
|
