Resolution: 0.01mm /0.001"

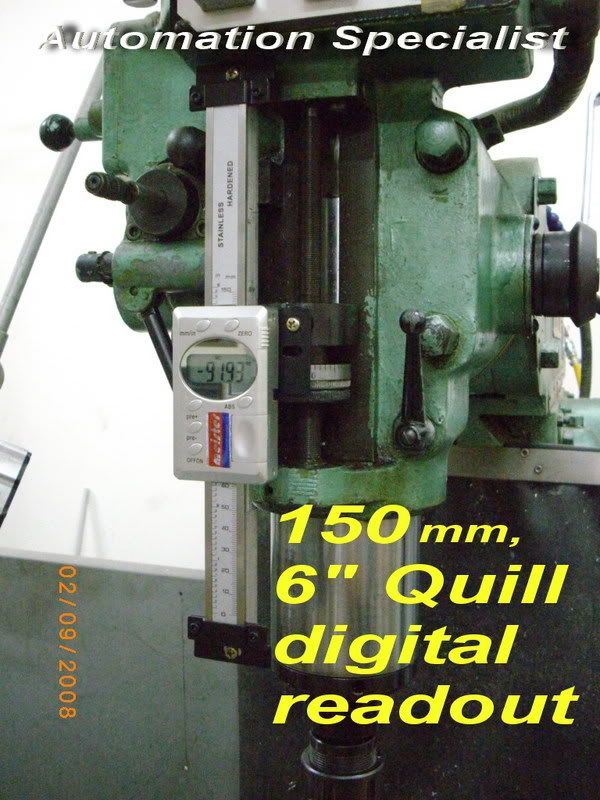

Can be used on the quill of most vertical knee mills with 120 to 150 mm (5 to 6") travel stroke. We show how the DigiScale is installed on a Lagun FTV 1S without modification. You can modify the vertical scale to suit the quill. Please check the dimensions on your mill and contact me for assistance.
DigiScale 150mm (6") Vertical digital readout DRO with Large LCD display
Resolution: 0.01mm /0.001"
|
Features:
Easy to read. Clear LCD digital display.
MM/Inch - metric/inch interchange.

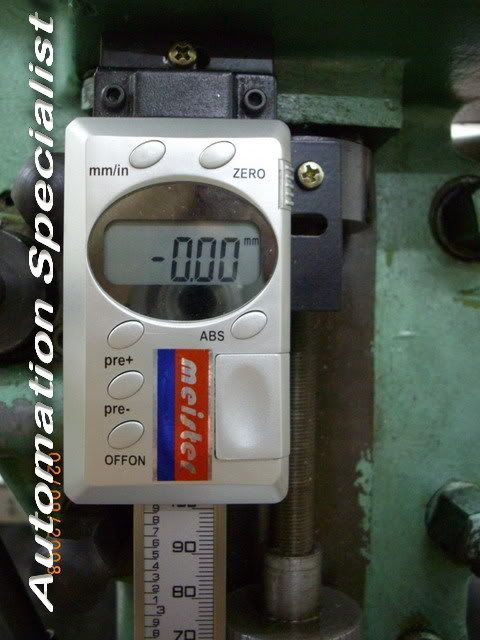

ZERO button (in ABS mode).
Pre+/Pre- (in ABS mode).
OffOn button: switch on/off.
Use only 1 piece of CR2032.
Long lasting battery.
English User guide.
|
Specification:
Measurement range: 150 mm / 6".
Resolution: 0.01mm / 0.001"
Material: Stainless steel, harden.
|
|

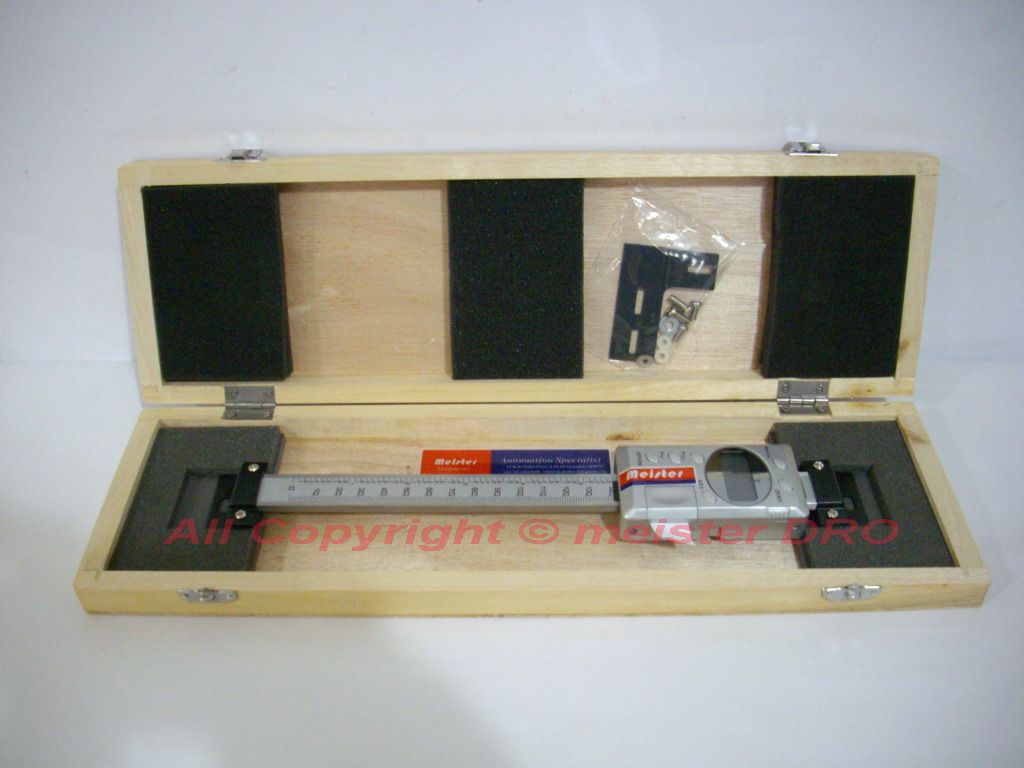

Items you will receive:
1x 150mm Digi-scale with battery and end brackets,
Operating instruction,
1x bracket and screws.
|

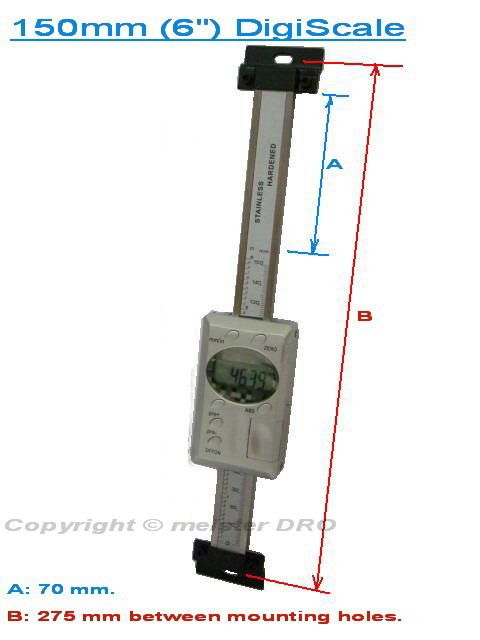

The overall length of the 6" / 150mm Digiscale is as show in the photo below:
|

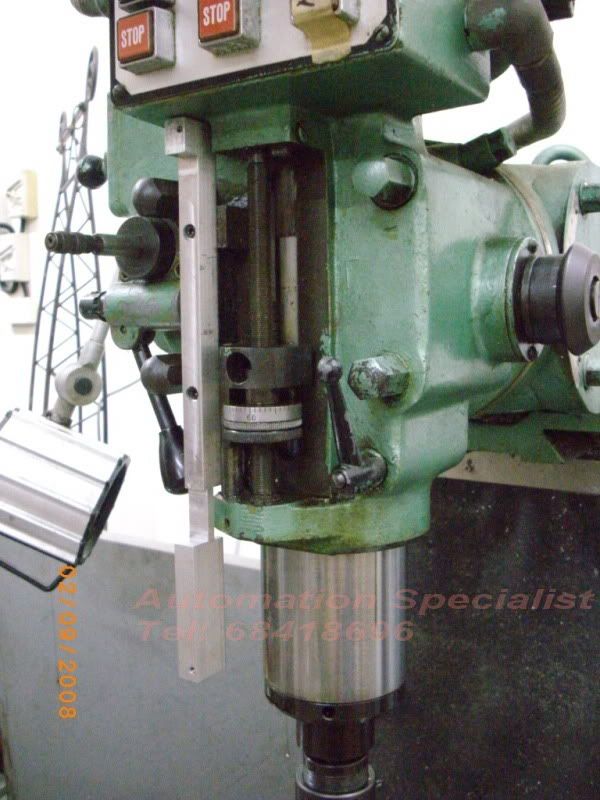

The alum. bracket and round knob shown in the following photographs are not included in this auction. You have to make them to suit your milling machine.

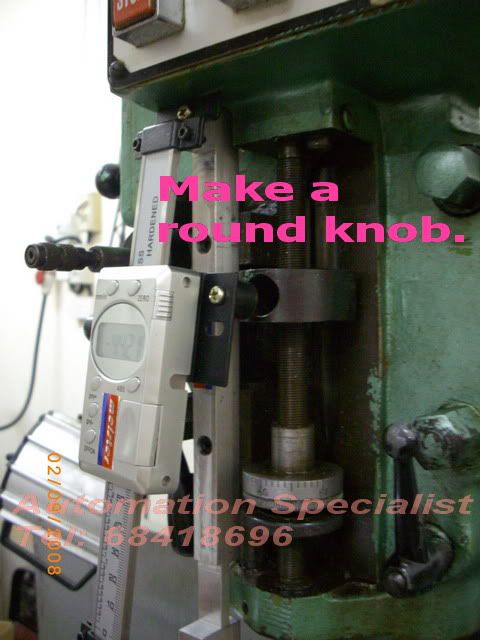

For this Lagun FTV 1S, we make a round knob to fit into the guide.
You may have to use a different method for your mill.

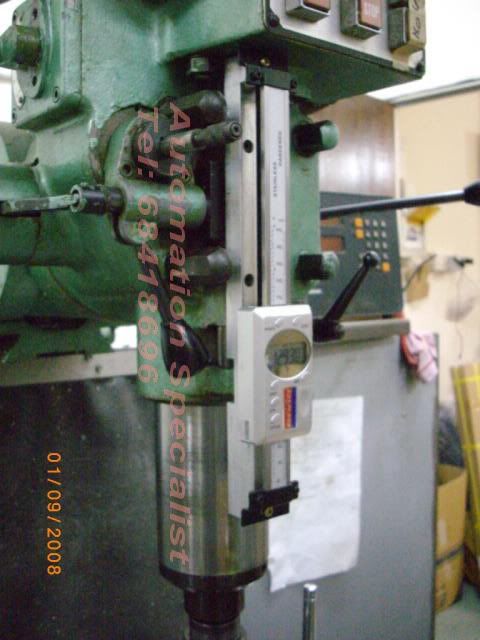

And finally job done!
Note: We show in the above photos the length of the 150mm Digiscale without modification.
|
If you have any questions, please ask EMAIL to makuharik{at} gmail{dot}com.
FREE postage by registered airmail using Singapore Post.
Once article is dispatched, tracking number will be emailed and/or updated on Paypal.
Delivery will depends on your location:
a] 2 weeks to major cities;
b] 3 ~ 4 weeks to Italy and France.
c] Delivery is subjected to delays in transit.
Warranty:
We provide a 30 days one-to-one exchange against manufacturer's defects. Please return all original content to be eligible for exchange.
Warranty is not applicable if unit is found to be damaged due to mis-used or improper handling.
Manufacturer: Meister
SKU: DigiScale-150
Unit of Measure: pcs
