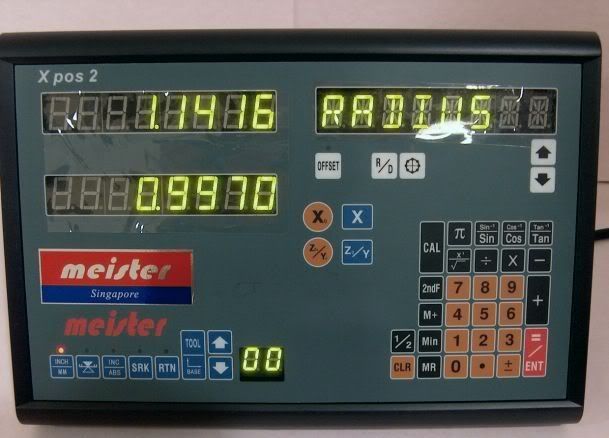

XPOS 2 Digital Readout and Linear Scales for 14x36 Lathe

Intelligent Functions of XPOS 2 for Mill:

• Inch/MM Conversion
• 1/2, one-touch key to find half the Value
• Scientific calculator
• Preset X,Y and Z dimensions
• INC/ABS: Incremental /Absolute co-ordinates
• Recall the last coordinate position (which is useful for repeated process).
• RTN: or Pause to Return To Normal mode of operation (last co-ordinates positions would be remembered and machinist may continue from where he left off)
• Mechanic Zero:   re-establish workpiece zero position after a power fail
• Bolt Hole Circle (Pitch Circle Diameter) - 5 simple steps to follow and you get the XY co-ordinates for all the holes.

Functions of XPOS 2 DRO on the lathe:

• Tool Offset: Store up to 99 tools offset data.
• Radius/ Diameter - button conveniently located on the front panel.
• Taper Measure - to measure the angle of taper, simply touch 2 points on the taper of the work piece and the DRO will calculate the angle. This feature is great for doing tapered jobs on the lathe.

Digital ReadOut Specifications:

• Response Speed:   60m/min (198.6feet/min)
• Resolution:  0.005mm/0.0002"
• Error:  ±1 count
• Power Source:  AC 110V - 220V, 50/60Hz
• Temperature Range:  Operating 0 ~ 40°C
• 7-digit Display:  Green color LED Display
• Dimension: 260 x 180 x 50/75mm(10.25 x 7 x 2.0/3.0 ins)

Linear Scale Specification:

• Etched glass
• Grating pitch: 0.02mm (50LP/min).
• Accuracy: ±0.005 mm or 0.0002" (at 20 deg C).
• Every scale has ABS reference marks.
• Response Speed: 60m/min or 40ins/sec.
• Output Signal: Two square wave signals, TTL.
